HCM Series

Advanced Hard Coating Technology

The HCM Series offers robust, high-capacity hard coating solutions for labs of all sizes. With advanced automation, remote diagnostics, and user-friendly HMI screens, these machines ensure flawless cleaning and coating for optical lenses. Each model is designed for maximum efficiency, safety, and ease of use.

Main Features

Heavy duty or compact design for all lab sizes
Separate chambers for cleaning & coating (HCM 400)
Auto refill of detergent, alcohol, and varnish
Remote control and diagnostics (network required)
User-friendly HMI screens
In & Out conveyors (HCM 400)
Chillers for varnish (+5°C to +20°C)
Auto deionized water filtration
Optional ultrasonic stripping/cleaning
Air conditioning for coating chamber
CE Marked, robust and safe

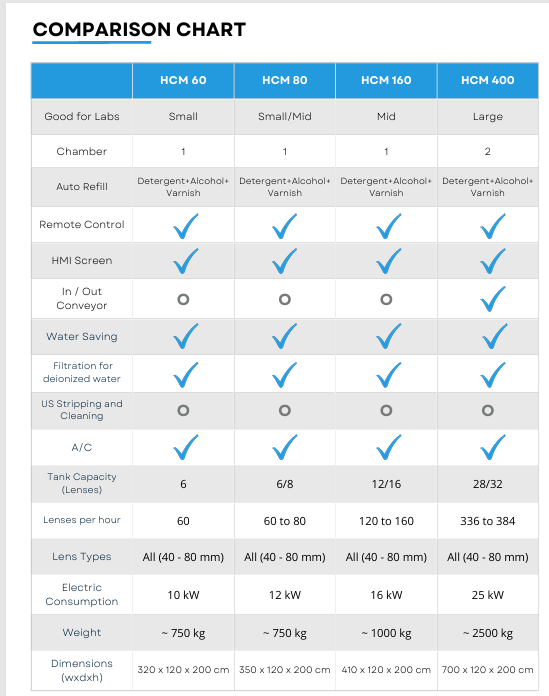

Technical Specifications

HCM 60: 6 lenses/tank, 60 lenses/hour, 10 kW, 320x120x200 cm, ~750 kg
HCM 80: 6/8 lenses/tank, 60-80 lenses/hour, 12 kW, 350x120x200 cm, ~750 kg
HCM 160: 12/16 lenses/tank, 120-160 lenses/hour, 16 kW, 410x120x200 cm, ~1000 kg
HCM 400: 28/32 lenses/tank, 336-384 lenses/hour, 25 kW, 700x120x200 cm, ~2500 kg

All models: 400V (3 phase + Neutral + Ground), CE Marked, L2R or R2L selectable, 40-80 mm lens compatibility, optional ultrasonic stripping, and more.

Features & Notes

Training and first start after installation (6 days)
Software programming, daily and preventive maintenance training
All needed filters for 1 month included
Laminar flow fan or drying unit equipped
Vapor extraction unit for safety
User friendly HMI screen
City or softened water required: 400 L/h
Optional flowmeters and heater for water inlet
Optional camera for live stream of coating chamber
Manual in English, 1 year warranty for parts and labor

Included with Standard Purchase

16 Lens Holder Rods (HCM 60/80/160), 30 for HCM 400
Lens Holders (60-80 mm): 126 (HCM 60), 168 (HCM 80), 336 (HCM 160), 672 (HCM 400)
Lens Holders (50-60 mm): 36 (HCM 60), 48 (HCM 80), 96 (HCM 160), 192 (HCM 400)
Lens Holders (40-50 mm): 18 (HCM 60), 24 (HCM 80), 48 (HCM 160), 96 (HCM 400)
